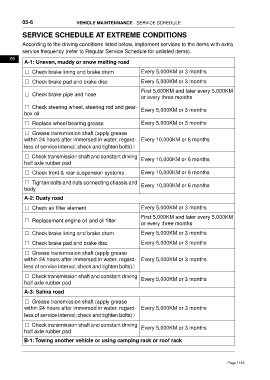

05-6 VEHICLE MAINTENNANCE - SERVICE SCHEDULE
SERVICE SCHEDULE AT EXTREME CONDITIONS
According to the driving conditions listed below, implement services to the items with extra
service frequency (refer to Regular Service Schedule for unlisted items).
05
A-1: Uneven, muddy or snow melting road
□ Check brake lining and brake drum Every 5,000KM or 3 months
□ Check brake pad and brake disc Every 5,000KM or 3 months
First 5,000KM and later every 5,000KM
□ Check brake pipe and hose
or every three months
□ Check steering wheel, steering rod and gear-
Every 5,000KM or 3 months
box oil
□ Replace wheel bearing grease Every 5,000KM or 3 months
□ Grease transmission shaft (apply grease
within 24 hours after immersed in water, regard- Every 10,000KM or 6 months
less of service interval; check and tighten bolts)）
□ Check transmission shaft and constant driving
Every 10,000KM or 6 months
half axle rubber pad
□ Check front & rear suspension systems Every 10,000KM or 6 months
□ Tighten bolts and nuts connecting chassis and
Every 10,000KM or 6 months
body
A-2: Dusty road
□ Check air filter element Every 5,000KM or 3 months
First 5,000KM and later every 5,000KM
□ Replacement engine oil and oil filter
or every three months
□ Check brake lining and brake drum Every 5,000KM or 3 months
□ Check brake pad and brake disc Every 5,000KM or 3 months
□ Grease transmission shaft (apply grease
within 24 hours after immersed in water, regard- Every 5,000KM or 3 months
less of service interval; check and tighten bolts)）
□ Check transmission shaft and constant driving Every 5,000KM or 3 months
half axle rubber pad
A-3: Salina road
□ Grease transmission shaft (apply grease
within 24 hours after immersed in water, regard- Every 5,000KM or 3 months
less of service interval; check and tighten bolts)）
□ Check transmission shaft and constant driving Every 5,000KM or 3 months
half axle rubber pad
B-1:Towing another vehicle or using camping rack or roof rack
