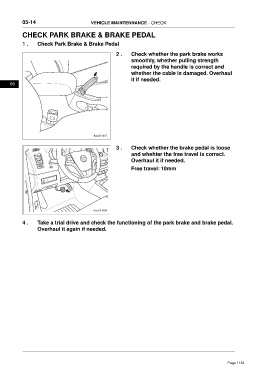

05-14 VEHICLE MAINTENNANCE - CHECK

CHECK PARK BRAKE & BRAKE PEDAL

1 . Check Park Brake & Brake Pedal

2 . Check whether the park brake works
smoothly, whether pulling strength
required by the handle is correct and
whether the cable is damaged. Overhaul
it if needed.
05

ftwx051007

3 . Check whether the brake pedal is loose
and whehter the free travel is correct.
Overhaul it if needed.
Free travel: 10mm

4 . Take a trial drive and check the functioning of the park brake and brake pedal.
Overhaul it again if needed.
