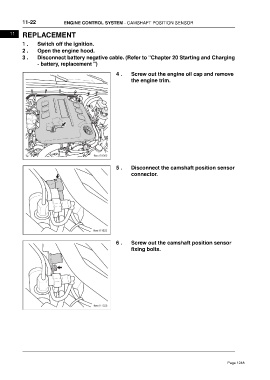

11-22 ENGINE CONTROL SYSTEM - CAMSHAFT POSITION SENSOR
11 REPLACEMENT
1 . Switch off the ignition.
2 . Open the engine hood.
3 . Disconnect battery negative cable. (Refer to "Chapter 20 Starting and Charging
- battery, replacement ")
4 . Screw out the engine oil cap and remove
the engine trim.
5 . Disconnect the camshaft position sensor
connector.
6 . Screw out the camshaft position sensor
fixing bolts.
