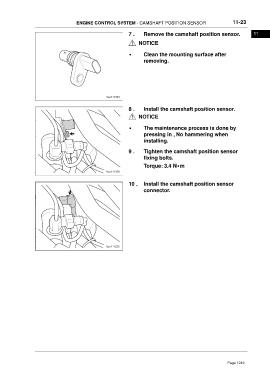

ENGINE CONTROL SYSTEM - CAMSHAFT POSITION SENSOR 11-23

7 . Remove the camshaft position sensor. 11

NOTICE

• Clean the mounting surface after
removing.

8 . Install the camshaft position sensor.
NOTICE

• The maintenance process is done by
pressing in , No hammering when
installing.

9 . Tighten the camshaft position sensor
fixing bolts.
Torque: 3.4 N•m

10 . Install the camshaft position sensor
connector.
