P. 1357

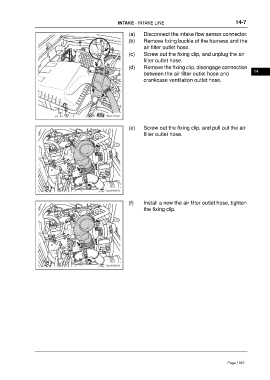

INTAKE - INTAKE LINE 14-7
(a) Disconnect the intake flow sensor connector.
(b) Remove fixing buckle of the harness and the
air filter outlet hose.
(c) Screw out the fixing clip, and unplug the air
filter outlet hose.
(d) Remove the fixing clip, disengage connection
14
between the air filter outlet hose and
crankcase ventilation outlet hose.
(e) Screw out the fixing clip, and pull out the air
filter outlet hose.
(f) Install a new the air filter outlet hose, tighten
the fixing clip.
