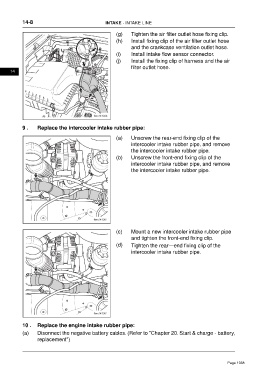

14-8 INTAKE - INTAKE LINE

(g) Tighten the air filter outlet hose fixing clip.
(h) Install fixing clip of the air filter outlet hose
and the crankcase ventilation outlet hose.
(i) Install intake flow sensor connector.
(j) Install the fixing clip of harness and the air
filter outlet hose.
14

9 . Replace the intercooler intake rubber pipe:
(a) Unscrew the rear-end fixing clip of the
intercooler intake rubber pipe, and remove
the intercooler intake rubber pipe.
(b) Unscrew the front-end fixing clip of the
intercooler intake rubber pipe, and remove
the intercooler intake rubber pipe.

(c) Mount a new intercooler intake rubber pipe
and tighten the front-end fixing clip.
(d) Tighten the rear—end fixing clip of the
intercooler intake rubber pipe.

10 . Replace the engine intake rubber pipe:

(a) Disonnect the negative battery cables. (Refer to "Chapter 20. Start & charge - battery,
replacement")
