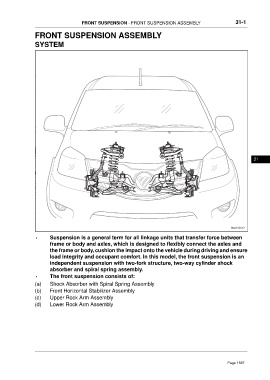

FRONT SUSPENSION - FRONT SUSPENSION ASSEMBLY 31-1

FRONT SUSPENSION ASSEMBLY

SYSTEM

31

• Suspension is a general term for all linkage units that transfer force between
frame or body and axles, which is designed to flexibly connect the axles and
the frame or body, cushion the impact onto the vehicle during driving and ensure
load integrity and occupant comfort. In this model, the front suspension is an
independent suspension with two-fork structure, two-way cylinder shock
absorber and spiral spring assembly.
• The front suspension consists of:
(a) Shock Absorber with Spiral Spring Assembly
(b) Front Horizontal Stabilizer Assembly
(c) Upper Rock Arm Assembly
(d) Lower Rock Arm Assembly
