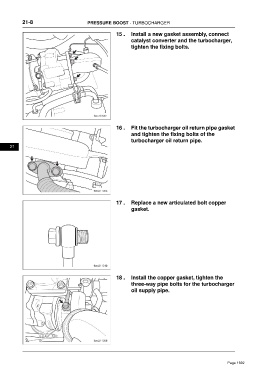

21-8 PRESSURE BOOST - TURBOCHARGER
15 . Install a new gasket assembly, connect
catalyst converter and the turbocharger,
tighten the fixing bolts.
16 . Fit the turbocharger oil return pipe gasket
and tighten the fixing bolts of the
turbocharger oil return pipe.
21
17 . Replace a new articulated bolt copper
gasket.
18 . Install the copper gasket, tighten the
three-way pipe bolts for the turbocharger
oil supply pipe.
