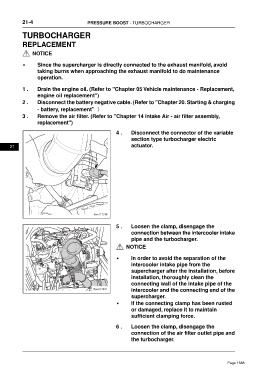

21-4 PRESSURE BOOST - TURBOCHARGER

TURBOCHARGER

REPLACEMENT
NOTICE

• Since the supercharger is directly connected to the exhaust manifold, avoid
taking burns when approaching the exhaust manifold to do maintenance
operation.

1 . Drain the engine oil. (Refer to "Chapter 05 Vehicle maintenance - Replacement,
engine oil replacement")
2 . Disconnect the battery negative cable. (Refer to "Chapter 20. Starting & charging
- battery, replacement”）
3 . Remove the air filter. (Refer to "Chapter 14 Intake Air - air filter assembly,
replacement")

4 . Disconnect the connector of the variable
section type turbocharger electric
21 actuator.

5 . Loosen the clamp, disengage the
connection between the intercooler intake
pipe and the turbocharger.
NOTICE

• In order to avoid the separation of the
intercooler intake pipe from the
supercharger after the installation, before
installation, thoroughly clean the
connecting wall of the intake pipe of the
intercooler and the connecting end of the
supercharger.
• If the connecting clamp has been rusted
or damaged, replace it to maintain
sufficient clamping force.

6 . Loosen the clamp, disengage the
connection of the air filter outlet pipe and
the turbocharger.
