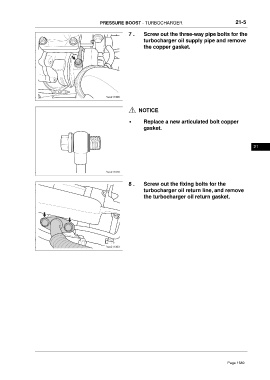

Page 1589 - Foton Workshop Manual - Tunland (AT)
P. 1589
PRESSURE BOOST - TURBOCHARGER 21-5
7 . Screw out the three-way pipe bolts for the
turbocharger oil supply pipe and remove
the copper gasket.
NOTICE
• Replace a new articulated bolt copper
gasket.
21
8 . Screw out the fixing bolts for the
turbocharger oil return line, and remove
the turbocharger oil return gasket.
Page 1589
