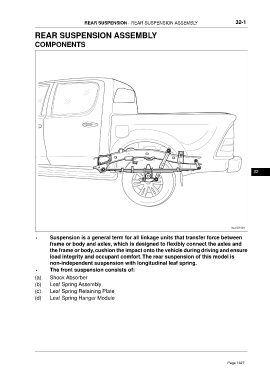

REAR SUSPENSION - REAR SUSPENSION ASSEMBLY 32-1
REAR SUSPENSION ASSEMBLY
COMPONENTS
32
• Suspension is a general term for all linkage units that transfer force between
frame or body and axles, which is designed to flexibly connect the axles and
the frame or body, cushion the impact onto the vehicle during driving and ensure
load integrity and occupant comfort.The rear suspension of this model is
non-independent suspension with longitudinal leaf spring.
• The front suspension consists of:
(a) Shock Absorber
(b) Leaf Spring Assembly
(c) Leaf Spring Retaining Plate
(d) Leaf Spring Hanger Module
