P. 1630

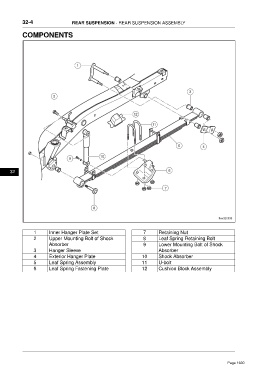

32-4 REAR SUSPENSION - REAR SUSPENSION ASSEMBLY
COMPONENTS
32
1 Inner Hanger Plate Set 7 Retaining Nut
2 Upper Mounting Bolt of Shock 8 Leaf Spring Retaining Bolt
Absorber 9 Lower Mounting Bolt of Shock
3 Hanger Sleeve Absorber
4 Exterior Hanger Plate 10 Shock Absorber
5 Leaf Spring Assembly 11 U-bolt
6 Leaf Spring Fastening Plate 12 Cushion Block Assembly
