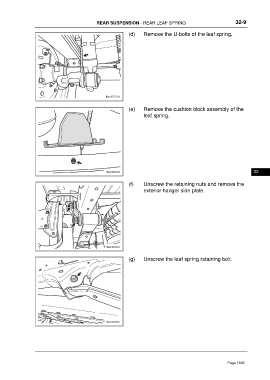

REAR SUSPENSION - REAR LEAF SPRING 32-9
(d) Remove the U-bolts of the leaf spring.
(e) Remove the cushion block assembly of the
leaf spring.
32
(f) Unscrew the retaining nuts and remove the
exterior hanger side plate.
(g) Unscrew the leaf spring retaining bolt.
