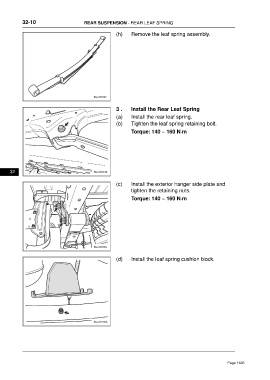

32-10 REAR SUSPENSION - REAR LEAF SPRING

(h) Remove the leaf spring assembly.

3 . Install the Rear Leaf Spring
(a) Install the rear leaf spring.
(b) Tighten the leaf spring retaining bolt.

Torque: 140 ~ 160 N·m

32

(c) Install the exterior hanger side plate and
tighten the retaining nuts.

Torque: 140 ~ 160 N·m

(d) Install the leaf spring cushion block.
