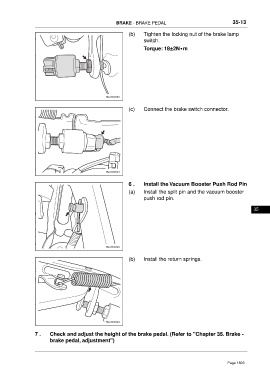

BRAKE - BRAKE PEDAL 35-13
(b) Tighten the locking nut of the brake lamp
switch.
Torque: 18±2N•m
(c) Connect the brake switch connector.
6 . Install the Vacuum Booster Push Rod Pin
(a) Install the split pin and the vacuum booster
push rod pin.
35
(b) Install the return springs.
7 . Check and adjust the height of the brake pedal. (Refer to "Chapter 35. Brake -
brake pedal, adjustment")
