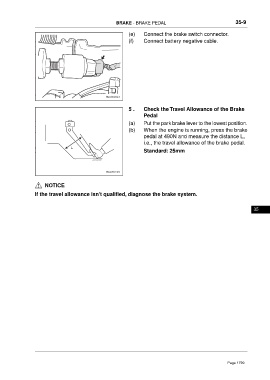

BRAKE - BRAKE PEDAL 35-9
(e) Connect the brake switch connector.
(f) Connect battery negative cable.
5 . Check the Travel Allowance of the Brake
Pedal
(a) Put the park brake lever to the lowest position.
(b) When the engine is running, press the brake
pedal at 490N and measure the distance L,
i.e., the travel allowance of the brake pedal.
Standard: 25mm
NOTICE
If the travel allowance isn't qualified, diagnose the brake system.
