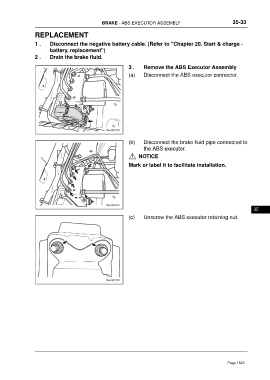

BRAKE - ABS EXECUTOR ASSEMBLY 35-33
REPLACEMENT
1 . Disconnect the negative battery cable. (Refer to "Chapter 20. Start & charge -
battery, replacement")
2 . Drain the brake fluid.
3 . Remove the ABS Executor Assembly
(a) Disconnect the ABS executor connector.
(b) Disconnect the brake fluid pipe connected to
the ABS executor.
NOTICE
Mark or label it to facilitate installation.
35
(c) Unscrew the ABS executor retaining nut.
