P. 1828

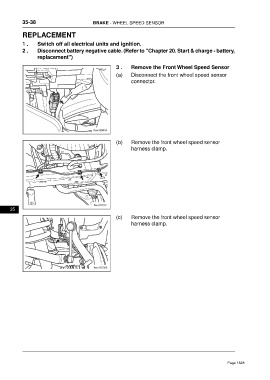

35-38                           BRAKE - WHEEL SPEED SENSOR

           REPLACEMENT

           1 .    Switch off all electrical units and ignition.
           2 .    Disconnect battery negative cable. (Refer to "Chapter 20. Start & charge - battery,
                  replacement")
                                                      3 .    Remove the Front Wheel Speed Sensor

                                                      (a)    Disconnect the front wheel speed sensor
                                                             connector.
















                                                      (b)    Remove the front wheel speed sensor
                                                             harness clamp.
















      35
                                                      (c)    Remove the front wheel speed sensor
                                                             harness clamp.
