Page 1839 - Foton Workshop Manual - Tunland (AT)
P. 1839

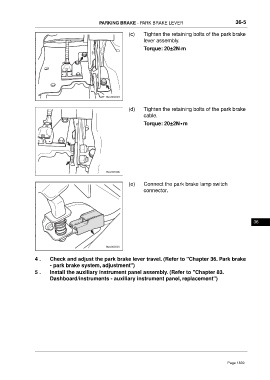

PARKING BRAKE - PARK BRAKE LEVER 36-5
(c) Tighten the retaining bolts of the park brake
lever assembly.
Torque: 20±2N·m
(d) Tighten the retaining bolts of the park brake
cable.
Torque: 20±2N•m
(e) Connect the park brake lamp switch
connector.
36
4 . Check and adjust the park brake lever travel. (Refer to "Chapter 36. Park brake
- park brake system, adjustment")
5 . Install the auxiliary instrument panel assembly. (Refer to "Chapter 83.
Dashboard/instruments - auxiliary instrument panel, replacement")
Page 1839
