Page 1907 - Foton Workshop Manual - Tunland (AT)
P. 1907
TRANSMISSION（6HP21） - TRANSFER CASE（4WD） 41-55

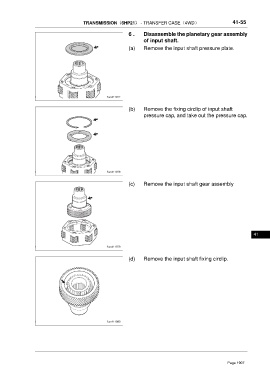

6 . Disassemble the planetary gear assembly
of input shaft.
(a) Remove the input shaft pressure plate.
(b) Remove the fixing circlip of input shaft
pressure cap, and take out the pressure cap.
(c) Remove the input shaft gear assembly
41
(d) Remove the input shaft fixing circlip.
Page 1907
