Page 1906 - Foton Workshop Manual - Tunland (AT)
P. 1906

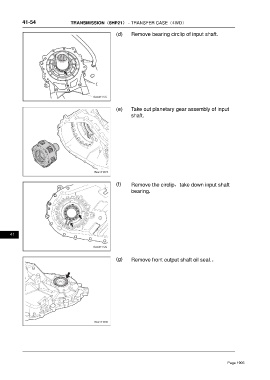

41-54 TRANSMISSION（6HP21） - TRANSFER CASE（4WD）
(d) Remove bearing circlip of input shaft.
(e) Take out planetary gear assembly of input
shaft.
(f) Remove the circlip，take down input shaft
bearing.
41
(g) Remove front output shaft oil seal.。
Page 1906
