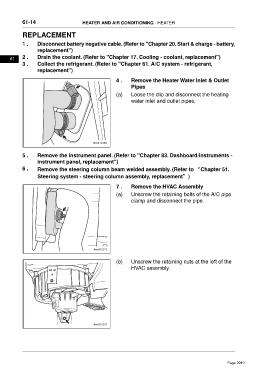

Page 2010 - Foton Workshop Manual - Tunland (AT)

61-14 HEATER AND AIR CONDITIONING - HEATER

REPLACEMENT

1 . Disconnect battery negative cable. (Refer to "Chapter 20. Start & charge - battery,
replacement")
61 2 . Drain the coolant. (Refer to "Chapter 17. Cooling - coolant, replacement")
3 . Collect the refrigerant. (Refer to "Chapter 61. A/C system - refrigerant,
replacement")

4 . Remove the Heater Water Inlet & Outlet
Pipes
(a) Loose the clip and disconnect the heating
water inlet and outlet pipes.

5 . Remove the instrument panel. (Refer to "Chapter 83. Dashboard/instruments -
instrument panel, replacement")
6 . Remove the steering column beam welded assembly. (Refer to “Chapter 51.
Steering system - steering column assembly, replacement”)

7 . Remove the HVAC Assembly
(a) Unscrew the retaining bolts of the A/C pipe
clamp and disconnect the pipe.

(b) Unscrew the retaining nuts at the left of the
HVAC assembly.
