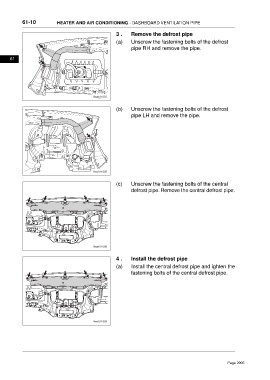

61-10 HEATER AND AIR CONDITIONING - DASHBOARD VENTILATION PIPE
3 . Remove the defrost pipe
(a) Unscrew the fastening bolts of the defrost
pipe RH and remove the pipe.
61
ftwx611007
(b) Unscrew the fastening bolts of the defrost
pipe LH and remove the pipe.
ftwx611008
(c) Unscrew the fastening bolts of the central
defrost pipe. Remove the central defrost pipe.
ftwx611009
4 . Install the defrost pipe
(a) Install the central defrost pipe and ighten the
fastening bolts of the central defrost pipe.
ftwx611009
