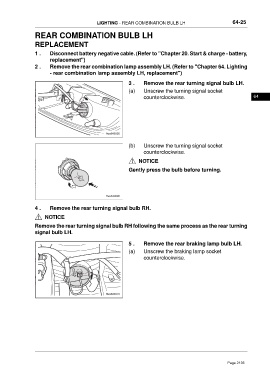

LIGHTING - REAR COMBINATION BULB LH 64-25

REAR COMBINATION BULB LH

REPLACEMENT
1 . Disconnect battery negative cable. (Refer to "Chapter 20. Start & charge - battery,
replacement")
2 . Remove the rear combination lamp assembly LH. (Refer to "Chapter 64. Lighting
- rear combination lamp assembly LH, replacement")

3 . Remove the rear turning signal bulb LH.
(a) Unscrew the turning signal socket
counterclockwise. 64

(b) Unscrew the turning signal socket
counterclockwise.

NOTICE
Gently press the bulb before turning.

4 . Remove the rear turning signal bulb RH.

NOTICE
Remove the rear turning signal bulb RH following the same process as the rear turning
signal bulb LH.

5 . Remove the rear braking lamp bulb LH.
(a) Unscrew the braking lamp socket
counterclockwise.
