Page 2137 - Foton Workshop Manual - Tunland (AT)
P. 2137

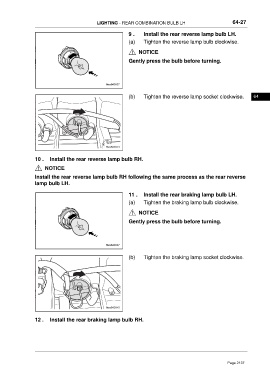

LIGHTING - REAR COMBINATION BULB LH 64-27
9 . Install the rear reverse lamp bulb LH.
(a) Tighten the reverse lamp bulb clockwise.
NOTICE
Gently press the bulb before turning.
(b) Tighten the reverse lamp socket clockwise. 64
10 . Install the rear reverse lamp bulb RH.
NOTICE
Install the rear reverse lamp bulb RH following the same process as the rear reverse
lamp bulb LH.
11 . Install the rear braking lamp bulb LH.
(a) Tighten the braking lamp bulb clockwise.
NOTICE
Gently press the bulb before turning.
(b) Tighten the braking lamp socket clockwise.
12 . Install the rear braking lamp bulb RH.
Page 2137
