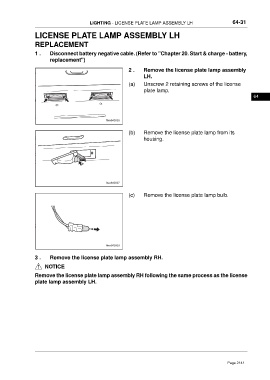

LIGHTING - LICENSE PLATE LAMP ASSEMBLY LH 64-31
LICENSE PLATE LAMP ASSEMBLY LH
REPLACEMENT
1 . Disconnect battery negative cable. (Refer to "Chapter 20. Start & charge - battery,
replacement")
2 . Remove the license plate lamp assembly
LH.
(a) Unscrew 2 retaining screws of the license
plate lamp.
64
(b) Remove the license plate lamp from its
housing.
(c) Remove the license plate lamp bulb.
3 . Remove the license plate lamp assembly RH.
NOTICE
Remove the license plate lamp assembly RH following the same process as the license
plate lamp assembly LH.
