P. 2143

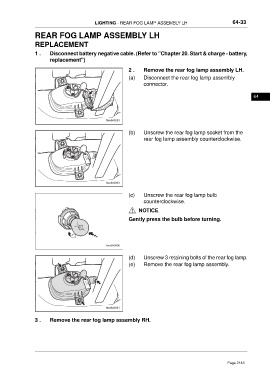

LIGHTING - REAR FOG LAMP ASSEMBLY LH 64-33
REAR FOG LAMP ASSEMBLY LH
REPLACEMENT
1 . Disconnect battery negative cable. (Refer to "Chapter 20. Start & charge - battery,
replacement")
2 . Remove the rear fog lamp assembly LH.
(a) Disconnect the rear fog lamp assembly
connector.
64
(b) Unscrew the rear fog lamp socket from the
rear fog lamp assembly counterclockwise.
(c) Unscrew the rear fog lamp bulb
counterclockwise.
NOTICE
Gently press the bulb before turning.
(d) Unscrew 3 retaining bolts of the rear fog lamp.
(e) Remove the rear fog lamp assembly.
3 . Remove the rear fog lamp assembly RH.
