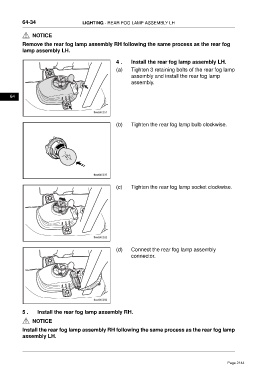

64-34 LIGHTING - REAR FOG LAMP ASSEMBLY LH
NOTICE
Remove the rear fog lamp assembly RH following the same process as the rear fog
lamp assembly LH.
4 . Install the rear fog lamp assembly LH.
(a) Tighten 3 retaining bolts of the rear fog lamp
assembly and install the rear fog lamp
assembly.
64
(b) Tighten the rear fog lamp bulb clockwise.
(c) Tighten the rear fog lamp socket clockwise.
(d) Connect the rear fog lamp assembly
connector.
5 . Install the rear fog lamp assembly RH.
NOTICE
Install the rear fog lamp assembly RH following the same process as the rear fog lamp
assembly LH.
