Page 2142 - Foton Workshop Manual - Tunland (AT)
P. 2142

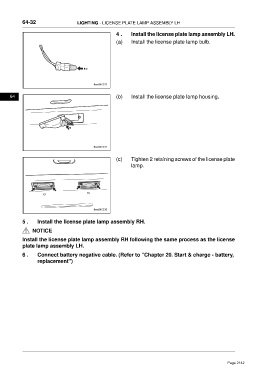

64-32                    LIGHTING - LICENSE PLATE LAMP ASSEMBLY LH

                                                      4 .    Install the license plate lamp assembly LH.
                                                      (a)    Install the license plate lamp bulb.














      64                                              (b)    Install the license plate lamp housing.















                                                      (c)    Tighten 2 retaining screws of the license plate
                                                             lamp.














           5 .    Install the license plate lamp assembly RH.

                NOTICE
           Install the license plate lamp assembly RH following the same process as the license
           plate lamp assembly LH.
           6 .    Connect battery negative cable. (Refer to "Chapter 20. Start & charge - battery,
                  replacement")
