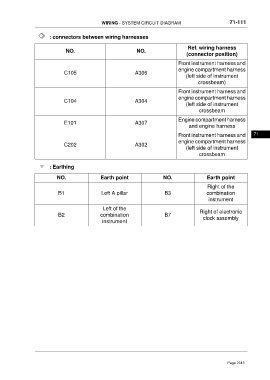

WIRING - SYSTEM CIRCUIT DIAGRAM 71-111

: connectors between wiring harnesses

Ref. wiring harness
NO. NO.
(connector position)
Front instrument harness and
engine compartment harness
C105 A306
(left side of instrument
crossbeam)
Front instrument harness and
engine compartment harness
C104 A304
(left side of instrument
crossbeam
Engine compartment harness
E101 A307
and engine harness

Front instrument harness and 71
engine compartment harness
C202 A302
(left side of instrument
crossbeam

: Earthing

NO. Earth point NO. Earth point
Right of the
B1 Left A pillar B3 combination
instrument
Left of the
Right of electronic
B2 combination B7 clock assembly
instrument
