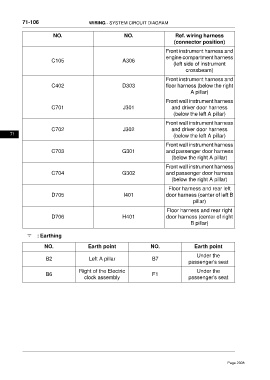

71-106 WIRING - SYSTEM CIRCUIT DIAGRAM

NO. NO. Ref. wiring harness
(connector position)

Front instrument harness and
engine compartment harness
C105 A306
(left side of instrument
crossbeam)

Front instrument harness and
C402 D303 floor harness (below the right
A pillar)

Front wall instrument harness
C701 J301 and driver door harness
(below the left A pillar)
Front wall instrument harness
C702 J302 and driver door harness
71
(below the left A pillar)
Front wall instrument harness
C703 G301 and passenger door harness
(below the right A pillar)
Front wall instrument harness
C704 G302 and passenger door harness
(below the right A pillar)

Floor harness and rear left
D705 I401 door harness (center of left B
pillar)

Floor harness and rear right
D706 H401 door harness (center of right
B pillar)

: Earthing

NO. Earth point NO. Earth point

Under the
B2 Left A pillar B7
passenger's seat
Right of the Electric Under the
B6 F1
clock assembly passenger's seat
