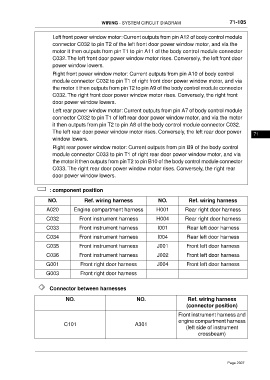

Page 2307 - Foton Workshop Manual - Tunland (AT)

WIRING - SYSTEM CIRCUIT DIAGRAM 71-105

Left front power window motor: Current outputs from pin A12 of body control module
connector C032 to pin T2 of the left front door power window motor, and via the
motor it then outputs from pin T1 to pin A11 of the body control module connector
C032. The left front door power window motor rises. Conversely, the left front door
power window lowers.
Right front power window motor: Current outputs from pin A10 of body control
module connector C032 to pin T1 of right front door power window motor, and via
the motor it then outputs from pin T2 to pin A9 of the body control module connector
C032. The right front door power window motor rises. Conversely, the right front
door power window lowers.

Left rear power window motor: Current outputs from pin A7 of body control module
connector C032 to pin T1 of left rear door power window motor, and via the motor
it then outputs from pin T2 to pin A8 of the body control module connector C032.
The left rear door power window motor rises. Conversely, the left rear door power
71
window lowers.
Right rear power window motor: Current outputs from pin B9 of the body control
module connector C033 to pin T1 of right rear door power window motor, and via
the motor it then outputs from pin T2 to pin B10 of the body control module connector
C033. The right rear door power window motor rises. Conversely, the right rear
door power window lowers.

: component position

NO. Ref. wiring harness NO. Ref. wiring harness

A020 Engine compartment harness H001 Rear right door harness
C032 Front instrument harness H004 Rear right door harness

C033 Front instrument harness I001 Rear left door harness
C034 Front instrument harness I004 Rear left door harness

C035 Front instrument harness J001 Front left door harness

C036 Front instrument harness J002 Front left door harness
G001 Front right door harness J004 Front left door harness

G003 Front right door harness

Connector between harnesses

NO. NO. Ref. wiring harness
(connector position)
Front instrument harness and
engine compartment harness
C101 A301
(left side of instrument
crossbeam)
