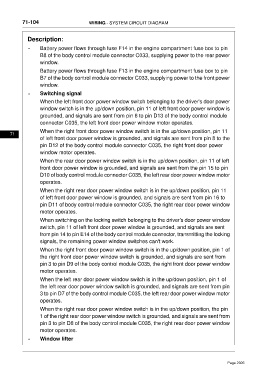

71-104 WIRING - SYSTEM CIRCUIT DIAGRAM

Description:

• Battery power flows through fuse F14 in the engine compartment fuse box to pin
B8 of the body control module connector C033, supplying power to the rear power
window.
Battery power flows through fuse F13 in the engine compartment fuse box to pin
B7 of the body control module connector C033, supplying power to the front power
window.

• Switching signal
When the left front door power window switch belonging to the driver's door power
window switch is in the up/down position, pin 11 of left front door power window is
grounded, and signals are sent from pin 6 to pin D13 of the body control module
connector C035, the left front door power window motor operates.
When the right front door power window switch is in the up/down position, pin 11
71
of left front door power window is grounded, and signals are sent from pin 8 to the
pin D12 of the body control module connector C035, the right front door power
window motor operates.

When the rear door power window switch is in the up/down position, pin 11 of left
front door power window is grounded, and signals are sent from the pin 15 to pin
D10 of body control module connector C035, the left rear door power window motor
operates.
When the right rear door power window switch is in the up/down position, pin 11
of left front door power window is grounded, and signals are sent from pin 16 to
pin D11 of body control module connector C035, the right rear door power window
motor operates.

When switching on the locking switch belonging to the driver's door power window
switch, pin 11 of left front door power window is grounded, and signals are sent
from pin 14 to pin E14 of the body control module connector, transmitting the locking
signals, the remaining power window switches can't work.
When the right front door power window switch is in the up/down position, pin 1 of
the right front door power window switch is grounded, and signals are sent from
pin 3 to pin D9 of the body control module C035, the right front door power window
motor operates.
When the left rear door power window switch is in the up/down position, pin 1 of
the left rear door power window switch is grounded, and signals are sent from pin
3 to pin D7 of the body control module C035, the left rear door power window motor
operates.

When the right rear door power window switch is in the up/down position, the pin
1 of the right rear door power window switch is grounded, and signals are sent from
pin 3 to pin D8 of the body control module C035, the right rear door power window
motor operates.
• Window lifter
