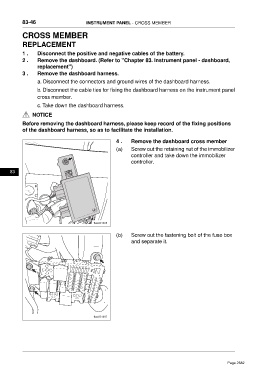

83-46 INSTRUMENT PANEL - CROSS MEMBER

CROSS MEMBER

REPLACEMENT
1 . Disconnect the positive and negative cables of the battery.
2 . Remove the dashboard. (Refer to "Chapter 83. Instrument panel - dashboard,
replacement")
3 . Remove the dashboard harness.
a. Disconnect the connectors and ground wires of the dashboard harness.

b. Disconnect the cable ties for fixing the dashboard harness on the instrument panel
cross member.
c. Take down the dashboard harness.

NOTICE
Before removing the dashboard harness, please keep record of the fixing positions
of the dashboard harness, so as to facilitate the installation.

4 . Remove the dashboard cross member

(a) Screw out the retaining nut of the immobilizer
controller and take down the immobilizer
controller.

83

ftwx831085

(b) Screw out the fastening bolt of the fuse box
and separate it.

ftwx831097
