P. 2587

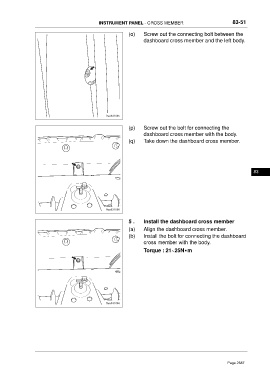

INSTRUMENT PANEL - CROSS MEMBER 83-51
(o) Screw out the connecting bolt between the
dashboard cross member and the left body.
ftwx831095
(p) Screw out the bolt for connecting the
dashboard cross member with the body.
(q) Take down the dashboard cross member.
83
ftwx831096
5 . Install the dashboard cross member
(a) Align the dashboard cross member.
(b) Install the bolt for connecting the dashboard
cross member with the body.
Torque : 21~25N•m
ftwx831096
