Page 2606 - Foton Workshop Manual - Tunland (AT)
P. 2606

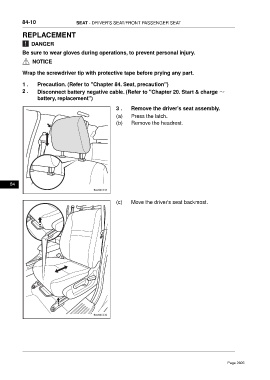

84-10 SEAT - DRIVER'S SEAT/FRONT PASSENGER SEAT
REPLACEMENT
DANGER
Be sure to wear gloves during operations, to prevent personal injury.
NOTICE
Wrap the screwdriver tip with protective tape before prying any part.
1 . Precaution. (Refer to "Chapter 84. Seat, precaution")
2 . Disconnect battery negative cable. (Refer to "Chapter 20. Start & charge ～
battery, replacement")
3 . Remove the driver's seat assembly.
(a) Press the latch.
(b) Remove the headrest.
84
(c) Move the driver's seat backmost.
Page 2606
