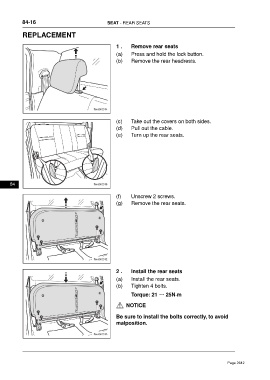

84-16 SEAT - REAR SEATS

REPLACEMENT

1 . Remove rear seats

(a) Press and hold the lock button.
(b) Remove the rear headrests.

(c) Take out the covers on both sides.
(d) Pull out the cable.
(e) Turn up the rear seats.

84

(f) Unscrew 2 screws.
(g) Remove the rear seats.

2 . Install the rear seats
(a) Install the rear seats.
(b) Tighten 4 bolts.

Torque: 21 ～ 25N·m

NOTICE

Be sure to install the bolts correctly, to avoid
malposition.
