Page 2625 - Foton Workshop Manual - Tunland (AT)
P. 2625

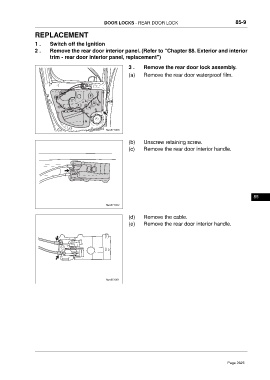

DOOR LOCKS - REAR DOOR LOCK 85-9
REPLACEMENT
1 . Switch off the Ignition
2 . Remove the rear door interior panel. (Refer to "Chapter 88. Exterior and interior
trim - rear door interior panel, replacement")
3 . Remove the rear door lock assembly.
(a) Remove the rear door waterproof film.
ftwx871006
(b) Unscrew retaining screw.
(c) Remove the rear door interior handle.
85
ftwx871002
(d) Remove the cable.
(e) Remove the rear door interior handle.
ftwx851001
Page 2625
