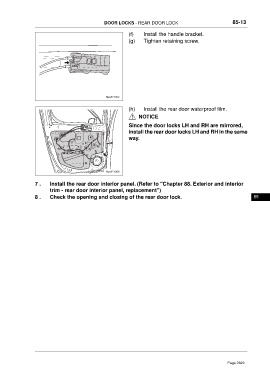

Page 2629 - Foton Workshop Manual - Tunland (AT)

DOOR LOCKS - REAR DOOR LOCK 85-13

(f) Install the handle bracket.
(g) Tighten retaining screw.

ftwx871002

(h) Install the rear door waterproof film.
NOTICE

Since the door locks LH and RH are mirrored,
install the rear door locks LH and RH in the same
way.

ftwx871006

7 . Install the rear door interior panel. (Refer to "Chapter 88. Exterior and interior
trim - rear door interior panel, replacement")
8 . Check the opening and closing of the rear door lock. 85

Page 2629
