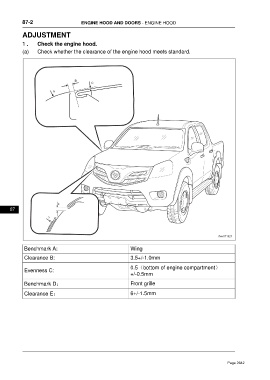

87-2 ENGINE HOOD AND DOORS - ENGINE HOOD
ADJUSTMENT
1 . Check the engine hood.
(a) Check whether the clearance of the engine hood meets standard.
87
ftwx871027
Benchmark A: Wing
Clearance B: 3.5+/-1.0mm
0.5（bottom of engine compartment）
Evenness C:
+/-0.5mm
Benchmark D： Front grille
Clearance E： 6+/-1.5mm
