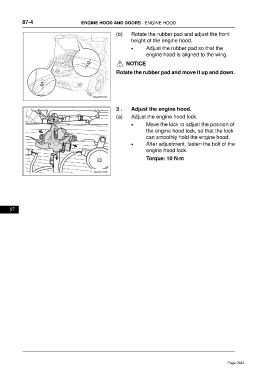

87-4 ENGINE HOOD AND DOORS - ENGINE HOOD

(b) Rotate the rubber pad and adjust the front
height of the engine hood.
• Adjust the rubber pad so that the
engine hood is aligned to the wing.
NOTICE

Rotate the rubber pad and move it up and down.

ftwx871028

3 . Adjust the engine hood.
(a) Adjust the engine hood lock.

• Move the lock to adjust the position of
the engine hood lock, so that the lock
can smoothly hold the engine hood.
• After adjustment, fasten the bolt of the
engine hood lock.
Torque: 10 N·m
