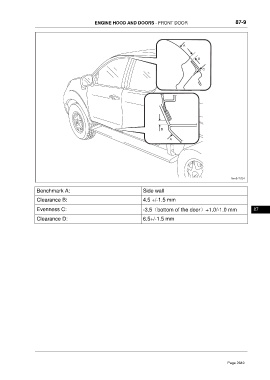

ENGINE HOOD AND DOORS - FRONT DOOR                              87-9










































                                                                                                          ftwx871024

                  Benchmark A:                                    Side wall

                  Clearance B:                                    4.5 +/-1.5 mm
                  Evenness C:                                     -3.5（bottom of the door）+1.0/-1.0 mm               87

                  Clearance D:                                    6.5+/-1.5 mm
