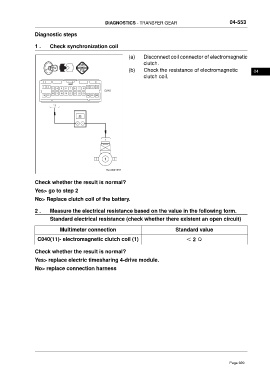

DIAGNOSTICS - TRANSFER GEAR 04-553

Diagnostic steps

1 . Check synchronization coil

(a) Disconnect coil connector of electromagnetic
clutch.
(b) Check the resistance of electromagnetic 04
clutch coil.

C040

ftwxd041357

Check whether the result is normal?
Yes> go to step 2

No> Replace clutch coil of the battery.

2 . Measure the electrical resistance based on the value in the following form.
Standard electrical resistance (check whether there existent an open circuit)

Multimeter connection Standard value

C040(11)- electromagnetic clutch coil (1) ＜ 2 Ω

Check whether the result is normal?

Yes> replace electric timesharing 4-drive module.
No> replace connection harness
