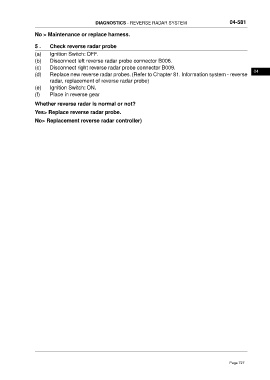

Page 727 - Foton Workshop Manual - Tunland (AT)
P. 727
DIAGNOSTICS - REVERSE RADAR SYSTEM 04-581
No > Maintenance or replace harness.
5 . Check reverse radar probe
(a) Ignition Switch: OFF.
(b) Disconnect left reverse radar probe connector B006.
(c) Disconnect right reverse radar probe connector B009.
04
(d) Replace new reverse radar probes. (Refer to Chapter 81. Information system - reverse
radar, replacement of reverse radar probe)
(e) Ignition Switch: ON.
(f) Place in reverse gear
Whether reverse radar is normal or not?
Yes> Replace reverse radar probe.
No> Replacement reverse radar controller)
Page 727
