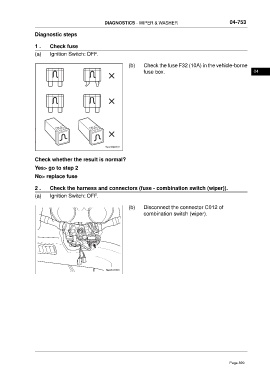

DIAGNOSTICS - WIPER & WASHER 04-753

Diagnostic steps

1 . Check fuse

(a) Ignition Switch: OFF.

(b) Check the fuse F32 (10A) in the vehicle-borne
fuse box. 04

Check whether the result is normal?

Yes> go to step 2
No> replace fuse

2 . Check the harness and connectors (fuse - combination switch (wiper)).
(a) Ignition Switch: OFF.

(b) Disconnect the connector C012 of
combination switch (wiper).

ftwx641020
