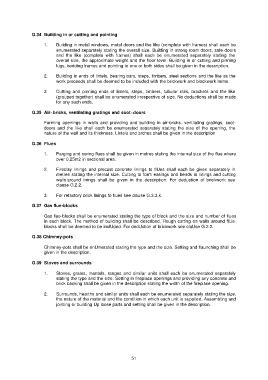

Page 54 - SMM2 eBOOK

G.34 Building in or cutting and pointing

1. Buiiding in metal windows, metal doors and the like (complete with frames) shall each be
enumerated separately stating the overall size. Building in strong-room doors, safe-doors
and the like (complete with frames) shall each be enumerated separately stating the
overail size, the approximate weight and the floor level. Building in or cutting and pinning
lugs, bedding frames and pointing to one or both sides shall be given in the description.

2. Building in ends of lintels, bearing bars, steps, timbers, steel sections and the like as the
work proceeds shall be deemed to be included with the brickwork and blockwork items.

3 Cutting and pinning ends of lintels, steps, timbers, tubular rails, brackets and the like
(grouped together) shall be enumerated irrespective of size. No deductions shall be made
for any such ends.

G.35 Air~bricks, ventilating gratings and soot~doors

Forming openings in walls and providing and building in air-bricks, ventilating gratings, soot-
doors and the like shall each be enumerated separately stating the size of the opening, the
nature of the wall and its thickness. Lintels and arches shall be given in the description

G.36 Flues

1. Parging and coring flues shall be given in metres stating the internal size of the flue where
over 0.25m2 in sectional area.

2. Fireclay linings and precast concrete linings to flUes shall each be given separately in
metres stating the internal size. Cutting to form easings and bends in linings and cutting
walls around linings shall be given in the description. For deduction of brickwork see
clause G.2.2.

3. For refactory brick linings to flues see clause G.3.3.k.

G.37 Gas flue-blocks

Gas flue-blocks shall be enumerated stating the type of block and the size and number of flues
in each block. The method of building shall be described. Rough cutting on walls around flUe-
blocks shall be deemed to be inclUded. For dedUction of brickwork see claUse G.2.2.

G.38 Chimney-pots

Chimney-pots shall be enUmerated stating the type and the size. Setting and flaunching shall be
given in the description.

G.39 Stoves and surrounds

1. Stoves, grates, mantels, ranges and similar units shall each be enumerated separately
stating the type and the size. Setting in firepiace openings and providing any concrete and
brick backing shall be given in the description stating the width of the firepiace opening.

2. Surrounds, hearths and similar units shall each be enumerated separately stating the size,
the nature of the material and the condition in which each unit is supplied. Assembling and
jointing or building Up loose parts and setting shall be given in the description.
