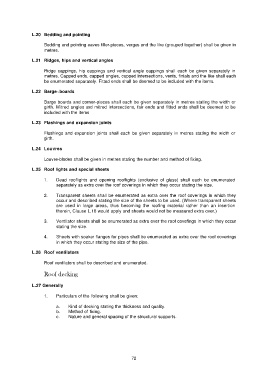

Page 75 - SMM2 eBOOK

L.20 Bedding and pointing

Bedding and pointing eaves filler-pieces, verges and the like (grouped together) shall be given in
metres.

L.21 Ridges, hips and vertical angles

Ridge cappings, hip cappings and vertical angle cappings shall each be given separately in
metres. Capped ends, capped angles, capped intersections, vents, finials and the like shall each
be enumerated separately. Fitted ends shall be deemed to be included with the items.

L.22 Barge~boards

Barge boards and corner-pieces shall each be given separately in metres stating the width or
girth. Mitred angles and mitred intersections, fair ends and fitted ends shall be deemed to be
included with the items

L.23 Flashings and expansion joints

Flashings and expansion joints shall each be given separately in metres stating the width or
girth.

L.24 Louvres

Louvre-blades shall be given in metres stating the number and method of fixing.

L.25 Roof lights and special sheets

1. Dead rooflights and opening rooflights (exclusive of glass) shall each be enumerated
separately as extra over the roof coverings in which they occur stating the size.

2. Transparent sheets shall be enumerated as extra over the roof coverings in which they
occur and described stating the size of the sheets to be used. (Where transparent sheets
are used in large areas, thus becoming the roofing material rather than an insertion
therein, Clause L.16 would apply and sheets would not be measured extra over.)

3. Ventilator sheets shall be enumerated as extra over the roof covefings in which they occur
stating the size.

4. Sheets with soaker fianges for pipes shall be enumerated as extra over the roof coverings
in which they occur stating the size of the pipe.

L.26 Roof ventilators

Roof ventilators shall be described and enumerated.

Roof decking

L.27 Generally

1. Particulars of the following shall be given:

a. Kind of decking stating the thickness and quality.
b. Method of fixing.
c. Nature and general spacing of the stnuctural supports.

72
