Page 57 - Eden Meadow 35 houses application as of 12 October

Esquire Developments NOTES:

Report all discrepancies, errors and omissions.
Verify all dimensions on site before commencing any work on site or
preparing shop drawings.

All materials, components and workmanship are to comply with the
relevant British Standards, Codes of Practice, and appropriate
manufacturers recommendations that from time to time shall apply.

For all specialist work, see relevant drawings.
This drawing and design are copyright of Clague LLP
Registration number OC335948.

Rev Date Description
A 28/02/2020 First Issue
B 05/03/2020 Client comment amendments
C 10/03/2020 Client comment amendments
D 11/03/2020 Client comment amendments
E 11/03/2020 Bin & bike store added
F 12/03/2020 Client comment amendments
G 20/03/2020 Bin & bike store Amendments
H 07/09/2020 Plot number amendments / handed

Drive
Through

Plot 4 Plot 3
aff 4H aff 1F

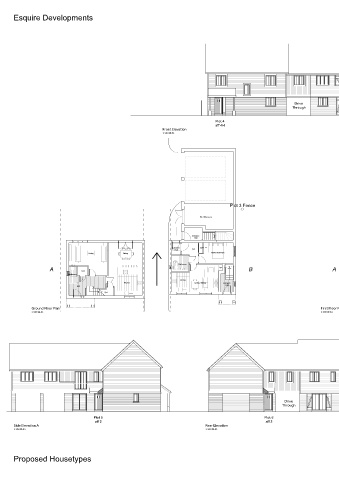

Front Elevation
1:100 @ A1

Materials
Master Bedroom
en-suit
Roofs
Slate Tiles - Marley Eternit Rivendale.

W
Walls
Bathroom
Brick - Cottage
Bedroom 2
Weatherboarding - Black Board

Joinery
uPVC windows/doors, double-glazed, colour
Plot 3 Fence Kitchen Anthracite.

Living / Dining
Rainwater Goods
Black uPVC.
Bin / Bike store
NOTE: All materials, samples and details subject
Landing
to Local Authority approval.

Entrance
Hall
Affordable Apartment 1
Landing
Entrance Cpd W W
Hall Hall
Bathroom en-suit Bathroom
Living Dining Master Bedroom Bedroom 2 Kitchen
Master Bedroom Plot Number(s): 3,4,5,6
en-suit
Handed: N/A
Bathroom W
W
Cpd
A Cpd B A B
Cloakroom
W
Landing
Kitchen Living / Dining
Master Bedroom
Kitchen Living / Dining Entrance Bedroom 2
Hall Project Title
Hall Bedroom 3 W
Bedroom 4
CP W
Cpd Proposed Residential Development
Land to the rear of Eden Meadow
Boyces Hill

Ground Floor Plan First Floor Plan Newington
1:100 @ A1 1:100 @ A1
Kent
ME9 7JH

Drawing Description

Affordable House Types
aff 1F aff 4H
1 bed 1 people 4 bed 5 people
39.0m2 / 419.8sqft 118.4m2 / 1274.4sqft
aff 2
2 bed 3 people
70.0m2 / 753.5sqft

Scale Drawn by
1:100@A1 AC
Date Checked by
September 2020 CSS

Drive
Through

62 Burgate, Canterbury
Kent CT1 2BH 01227 762060
Plot 5 Plot 6
aff 2 aff 2 1 Kinsbourne Court, Luton Road,
Harpenden, Hertfordshire Al5 3BL 01582 765102
Side Elevation A Rear Elevation Side Elevation B
1:100 @ A1 1:100 @ A1 1:100 @ A1 8, Disney Street
London SE1 1JF 0203 597 6112

CANTERBURY LONDON HARPENDEN
0 1 2 3 4 5 10m

Scale 1:100 Drawing Number Revision
Proposed Housetypes
23254B / 513 H
