Page 59 - Eden Meadow 35 houses application as of 12 October

Esquire Developments NOTES:

Report all discrepancies, errors and omissions.
Verify all dimensions on site before commencing any work on site or
preparing shop drawings.

All materials, components and workmanship are to comply with the
relevant British Standards, Codes of Practice, and appropriate
manufacturers recommendations that from time to time shall apply.

For all specialist work, see relevant drawings.
This drawing and design are copyright of Clague LLP
Registration number OC335948.

Rev Date Description
A 28/02/2020 First Issue
B 04/03/2020 Client comment amendments
C 06/03/2020 Client comment amendments
D 10/03/2020 Client comment amendments
E 11/03/2020 Client comment amendments
F 11/03/2020 Bin & bike store added
G 12/03/2020 Client comment amendments
H 12/03/2020 Bin & bike store Amendments
J 20/03/2020 Bin & bike store Amendments
K 07/09/2020 Plot number amendments

Drive Parking Bays
Through

Plot 10 Plot 9 Plot 7
Aff 3C Aff 3C Aff 2

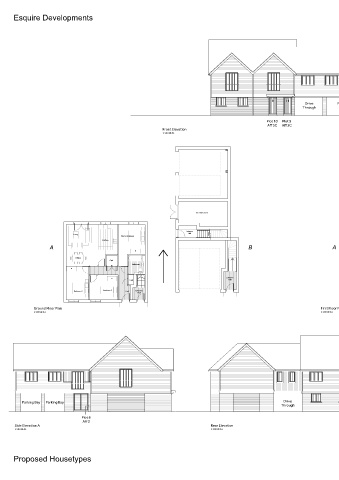

Front Elevation
1:100 @ A1

Master Bedroom Materials
en-suit

Roofs
Slate Tiles - Marley Eternit Rivendale.
W

Walls
Bathroom
Bedroom 2
Brick - Cottage
Weatherboarding - Black Board

Joinery
uPVC windows/doors, double-glazed, colour
Kitchen Anthracite.
Living / Dining
Bin / Bike store
Rainwater Goods
Black uPVC.

Landing
NOTE: All materials, samples and details subject
to Local Authority approval.
Entrance
Hall
Living Living
Master Bedroom Bedroom 2
Kitchen Kitchen
Affordable Apartment 2
A B A en-suit Bathroom Landing B
W W Kitchen
Plot Number(s): 7,8,9,10
Dining Dining
Cpd Cpd Handed: N/A
Landing
Bathroom
W
Bathroom Living / Dining
Entrance Master Bedroom Bedroom 2
W W
Cpd Hall
W Project Title
W
Master Bedroom
Bedroom 3 Entrance Bedroom 3
Bedroom 2 Hall Proposed Residential Development
Hall Void
W
Land to the rear of Eden Meadow
Boyces Hill
Ground Floor Plan First Floor Plan Newington
1:100 @ A1 1:100 @ A1
Kent
ME9 7JH

Drawing Description

Affordable House Types
2 bed 3 people aff 2
70.0m2 / 754.5sqft

3 bed 5 people
aff 3C
87.5m2 / 941.8sqft

Scale Drawn by
1:100@A1 AC
Date Checked by
September 2020 CSS

Parking Bay Parking Bay Drive
Through

62 Burgate, Canterbury
Kent CT1 2BH 01227 762060
Plot 8
Aff 2 1 Kinsbourne Court, Luton Road,
Harpenden, Hertfordshire Al5 3BL 01582 765102
Side Elevation A Rear Elevation Side Elevation B
1:100 @ A1 1:100 @ A1 1:100 @ A1 8, Disney Street
London SE1 1JF 0203 597 6112

CANTERBURY LONDON HARPENDEN
0 1 2 3 4 5 10m

Scale 1:100 Drawing Number Revision
Proposed Housetypes
23254B / 514 K
