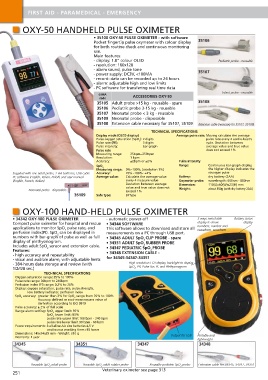

Page 260 - Catalogue 2016 - 17

FIRST AID - PARAMEDICAL - EMERGENCY

OXY-50 HANDHELD PULSE OXIMETER

• 35100 OXY-50 PULSE OXIMETER - with software
Pocket fingertip pulse oxymeter with colour display 35106
for both routine check and continuous monitoring
use.
Main features:
- display: 1.8" colour OLED Pediatric probe - reusable
- resolution: 160x128
- alarm sound, pulse tone 35107
- power supply: DC3V, <100MA
- record: data can be recorded up to 24 hours
- alarm: adjustable high and low limits
- PC software for transfering real time data
Infant probe - reusable
GIMA ACCESSORIES OXY-50
code
35105 Adult probe >15 kg - reusable - spare 35108
35106 Pediatric probe 3-15 kg - reusable
35107 Neonatal probe < 3 kg - reusable
35109 Neonatal probe - disposable
35108 Extension cable necessary for 35107, 35109 Extension cable (necessary for 35107, 35109)
TECHNICAL SPECIFICATIONS
Display mode (OLED display) Average pulse rate: Moving calculate the average
Pulse oxygen saturation (SpO ): 2 digits pulse rate every 4 cardio-beat's
2
Pulse rate (PR): 3 digits cycle. Deviation between
Pulse intensity: bar-graph average value and true value
Pulse rate does not exceed 1%
Measuring range: 25bpm~250bpm
Resolution: 1 bpm
Accuracy: ±2bpm or ±2% Pulse intensity
SpO 2 Range: Continuous bar-graph display,
Measuring range: 0%~100%, (resolution 1%) the higher display indicates the
Supplied with one adult probe, 2 AA batteries, USB cable Accuracy: 70%~100%: ±2% stronger pulse
PC software (English, Italian, Polish) and user manual Average value: Calculate the average value Battery: dry battery (2AA)
(English, French, Italian) every 4 measure value Oxymeter probe: wavelength: 660nm - 880nm
Deviation between average Dimension: 110(L)x60(W)x23(H) mm
value and true value does not Weight: about 180g (with dry battery 2AA)
Neonatal probe - disposable exceed 1%
35109 Safe type: BFType

OXY-100 HAND-HELD PULSE OXIMETER

• 34342 OXY-100 PULSE OXIMETER - automatic power-off 3 ways switchable Battery status
Compact pulse oximeter for hospital and rescue • 34344 SOFTWARE display to show: display
applications to monitor SpO pulse rate, and This software allows to download and store all numbers, number and
waveform, waveform
2
perfusion index(PI). SpO can be displayed in measurements on a PC through USB port.
2
numbers with bar-graph of pulse as well as full • 34345 ADULT SpO CLIP PROBE - spare
2
display of plethysmogram. • 34351 ADULT SpO RUBBER PROBE
2
Includes adult SpO sensor and extension cable. • 34347 PEDIATRIC SpO PROBE
2
Features: • 34348 EXTENSION CABLE -
2
- high accuracy and repeatability
- visual and audible alarm, with adjustable limits for 34345-34347-34351
- 384-hours data storage and review (with High resolution LCD display, backlight to display
1/2/4/8 sec.) SpO , PR, Pulse Bar, Pi, and Plethysmogram
2
TECHNICAL SPECIFICATIONS
Oxygen saturation range: 35% to 100%
Pulse rate range: 30bpm to 240bpm
Perfusion index (PI) range: 0.2% to 20%
Display: oxygen saturation, pulse rate, pulse strength,
low battery indicator, perfusion index
SpO accuracy: greater than 3% for SpO range from 70% to 100%
2
2
Accuracy defined as root-mean-square value of
derivation according to ISO 9919
Pulse accuracy: ± 2% of full scale
Range alarm setting: SpO upper limit: 95%
2
SpO lower limit: 85%
2
pulse rate upper limit 100 bpm - 240 bpm
pulse rate lower limit 30 bpm - 60 bpm
Power requirements: 3 alkaline AA size batteries 4,5 V
continuous working time >30 hours
Dimensions: 145x74x29 mm - Weight: 210 g Output for USB Portable and
Warranty: 1 year
lightweight
34345 34351 34347 34348
Reusable SpO adult probe Reusable SpO adult rubber probe Reusable pediatric SpO probe Extension cable for 34345, 34347, 34351
2 2 2
Veterinary oximeter see page 313
